Description

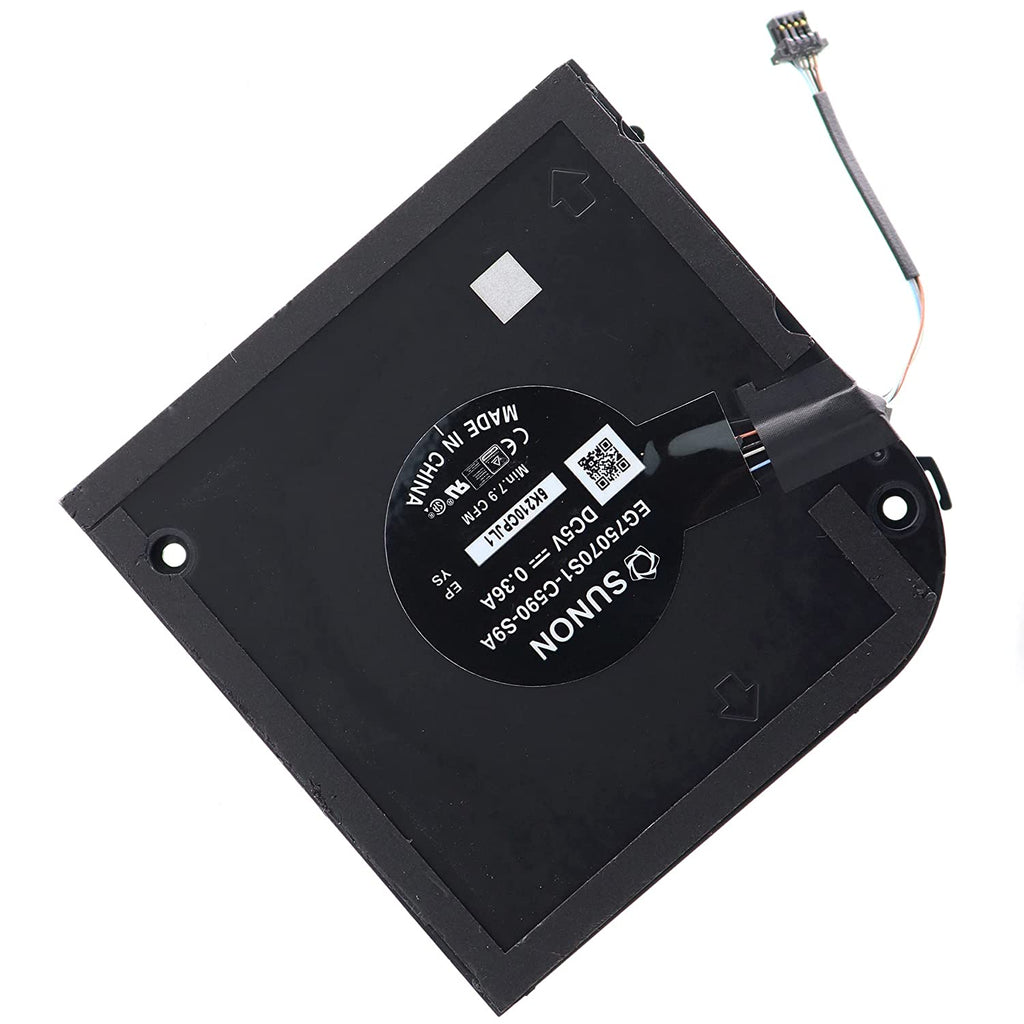

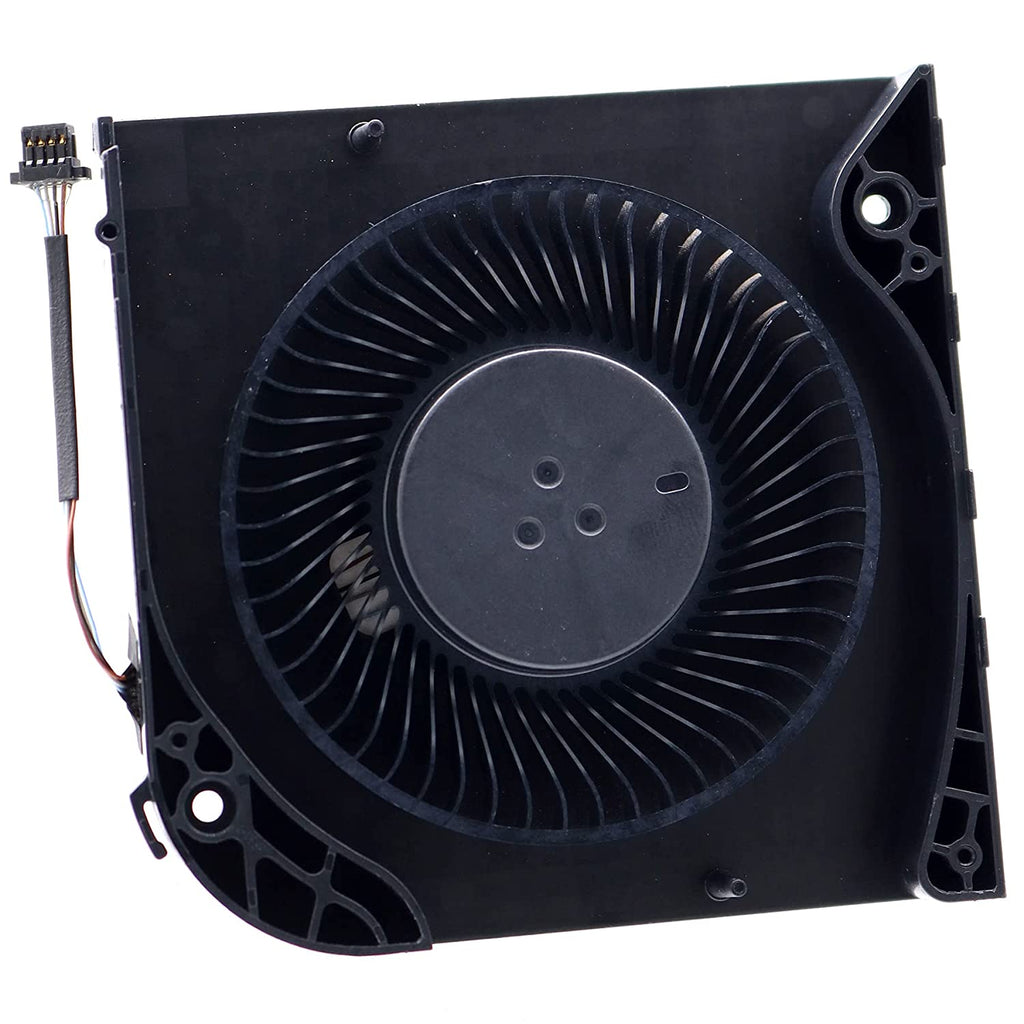

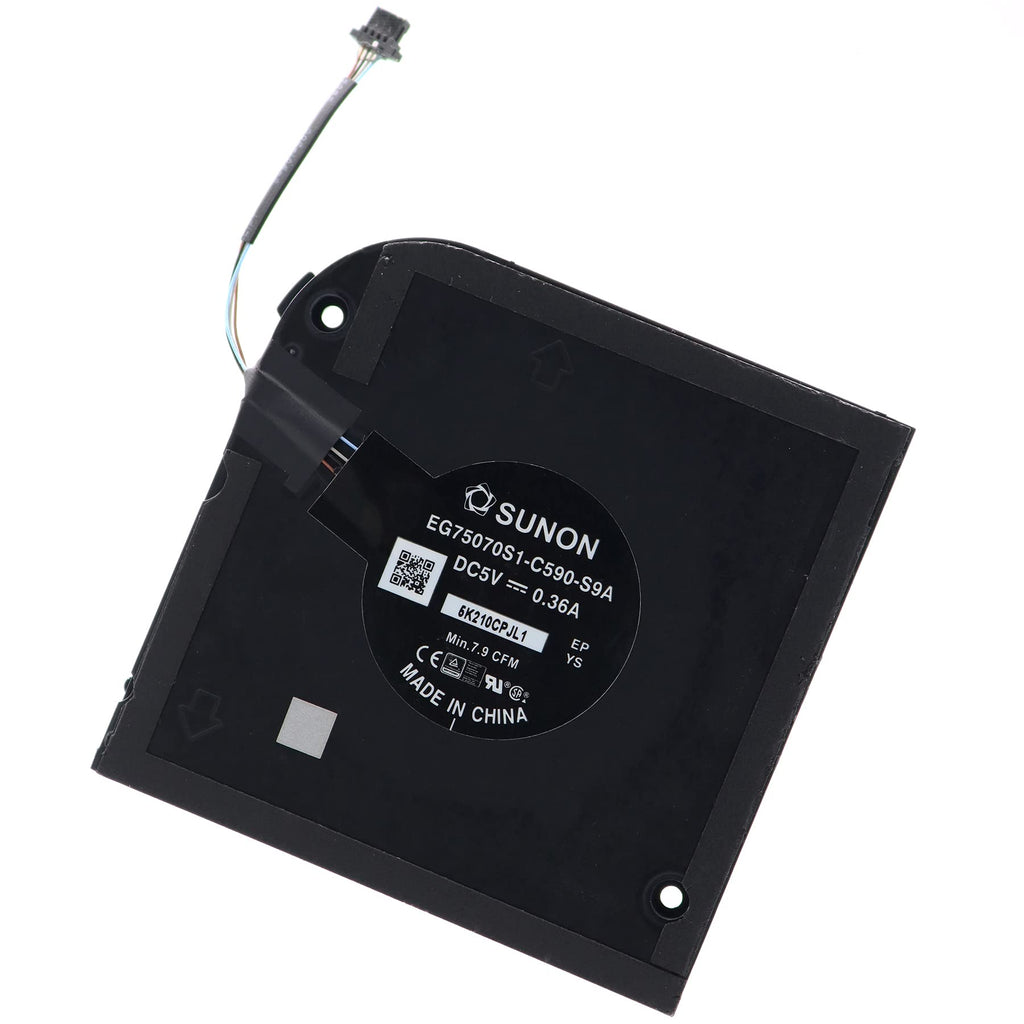

This is the CPU Cooling Fan for Dell Latitude 15 5521 and Precision 3561 series laptop with U-type CPU processor, and with the integrated Graphics.
If your PC fan is running very loud or not functioning then a replacement may be needed.

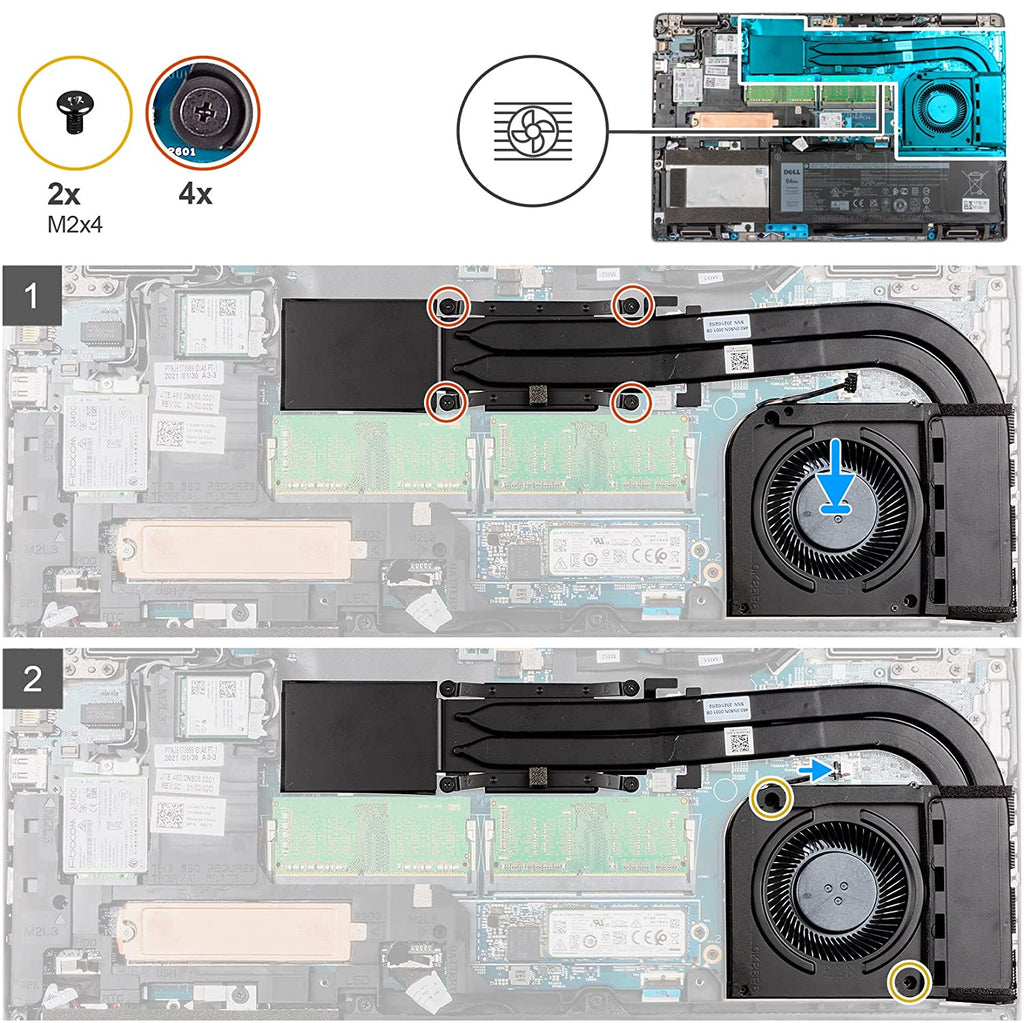

The fan uses an integrated flex cable to connect to the mainboard. The cable connects via 4-pin connector making it a plug and play replacement module, NO soldering is required, attaches to your existing heatsink.
D P/N: VK8HK, 0VK8HK, CN-0VK8HK
Manufacturer Part Number(s):
EG75070S1-C590-S9A, 023.100NS.0001
Specifications:
Direct Current: DC 5V / 0.36A 2.2W, 7.9 CFM. REV: A01
Color: Black
Connection: 4-pin 4-wire, plug-in
Wire Length: 5.10 cm/2.00-inch
Reference list of compatible with Dell Laptop Models:
- Latitude 15 5521 (e5521)
- Precision 3561 (M3561)
What's in the Box
1x CPU Cooling Fan (NO thermal paste)
