Description

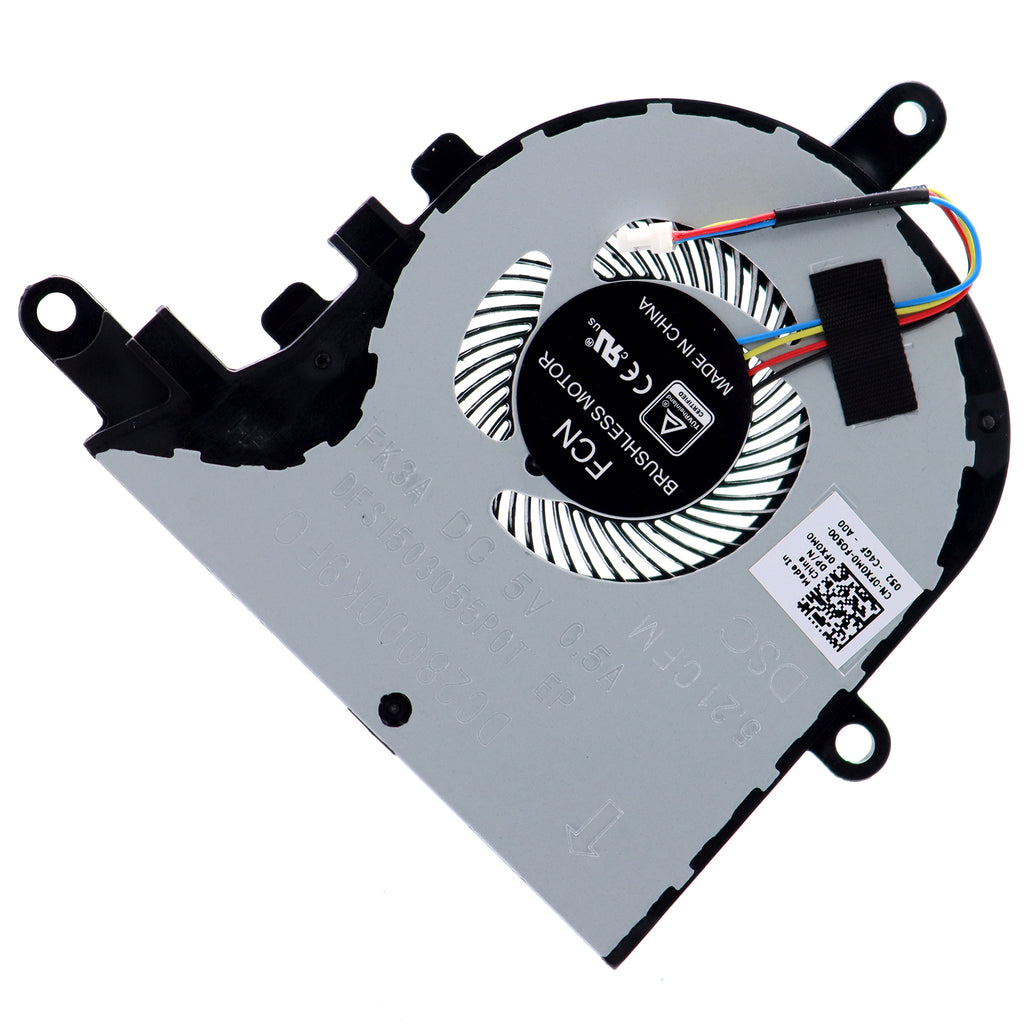

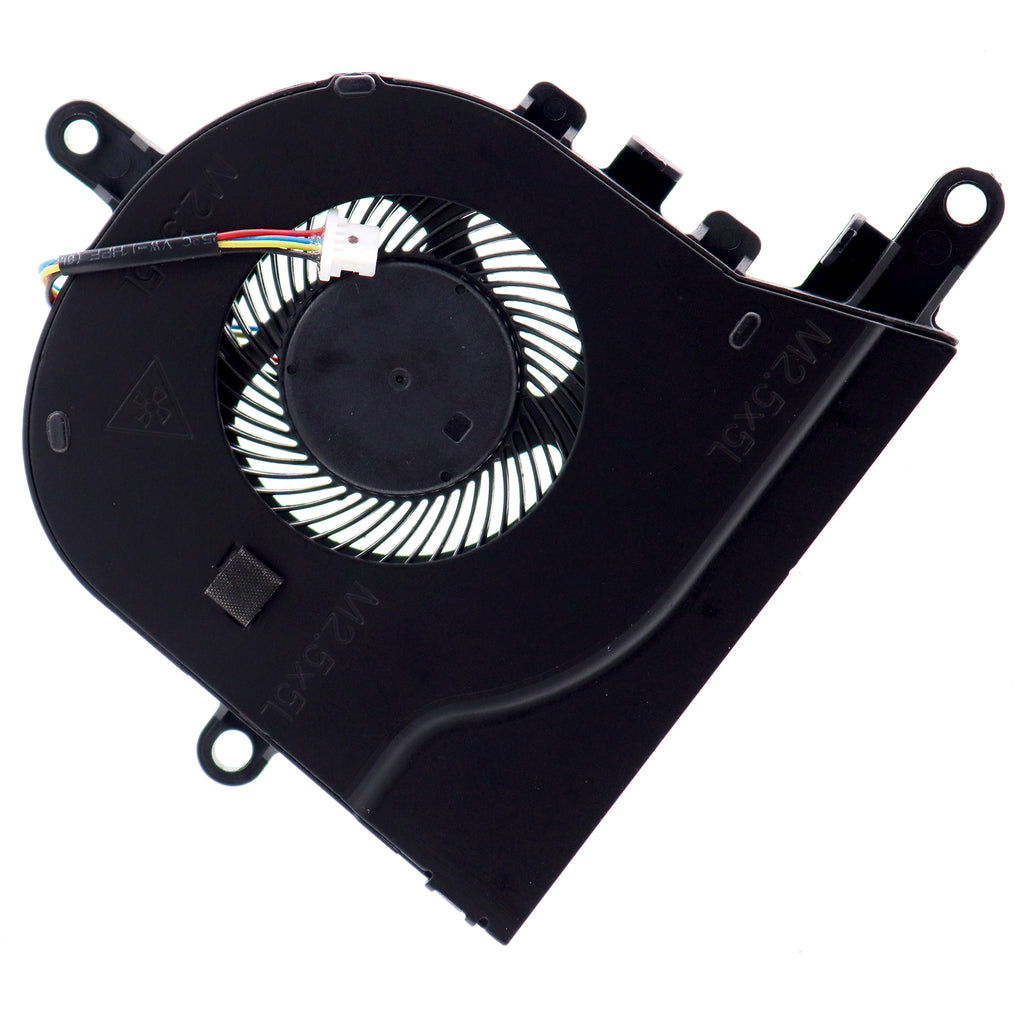

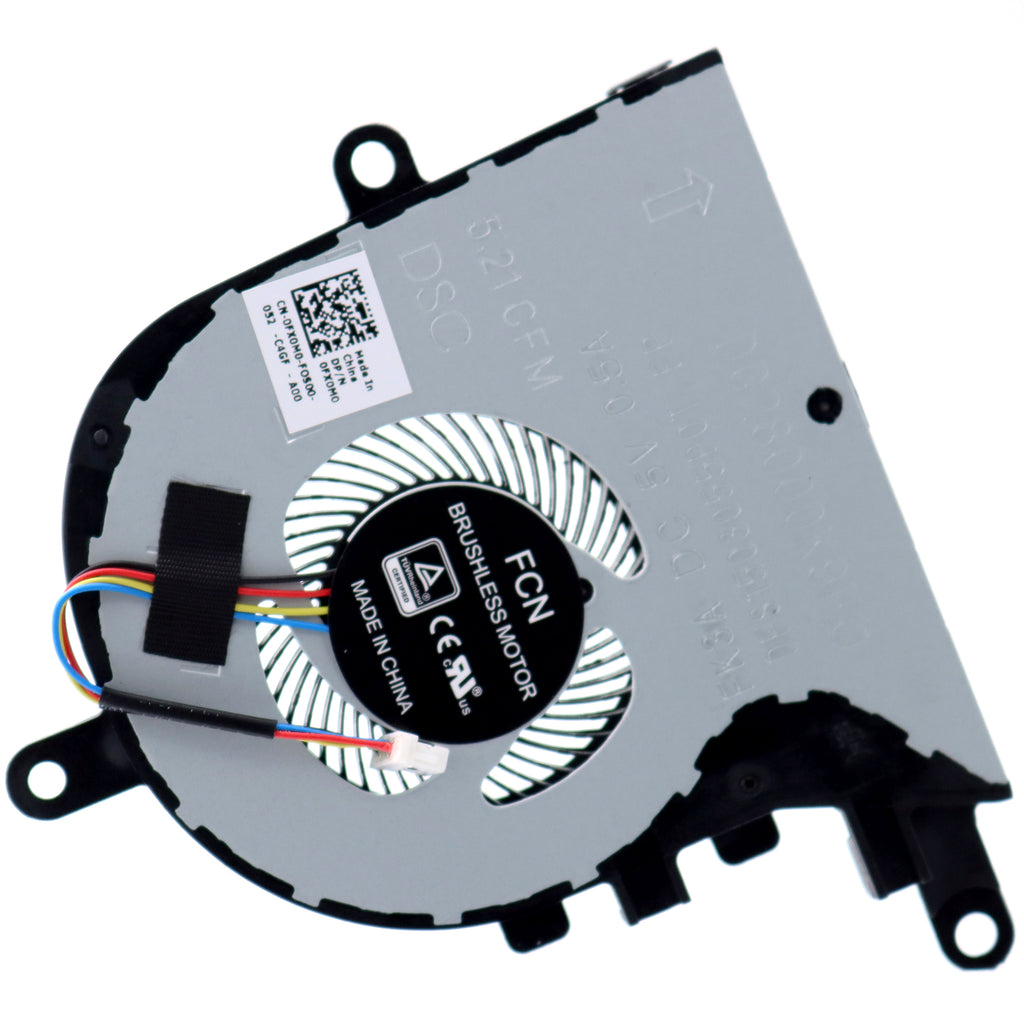

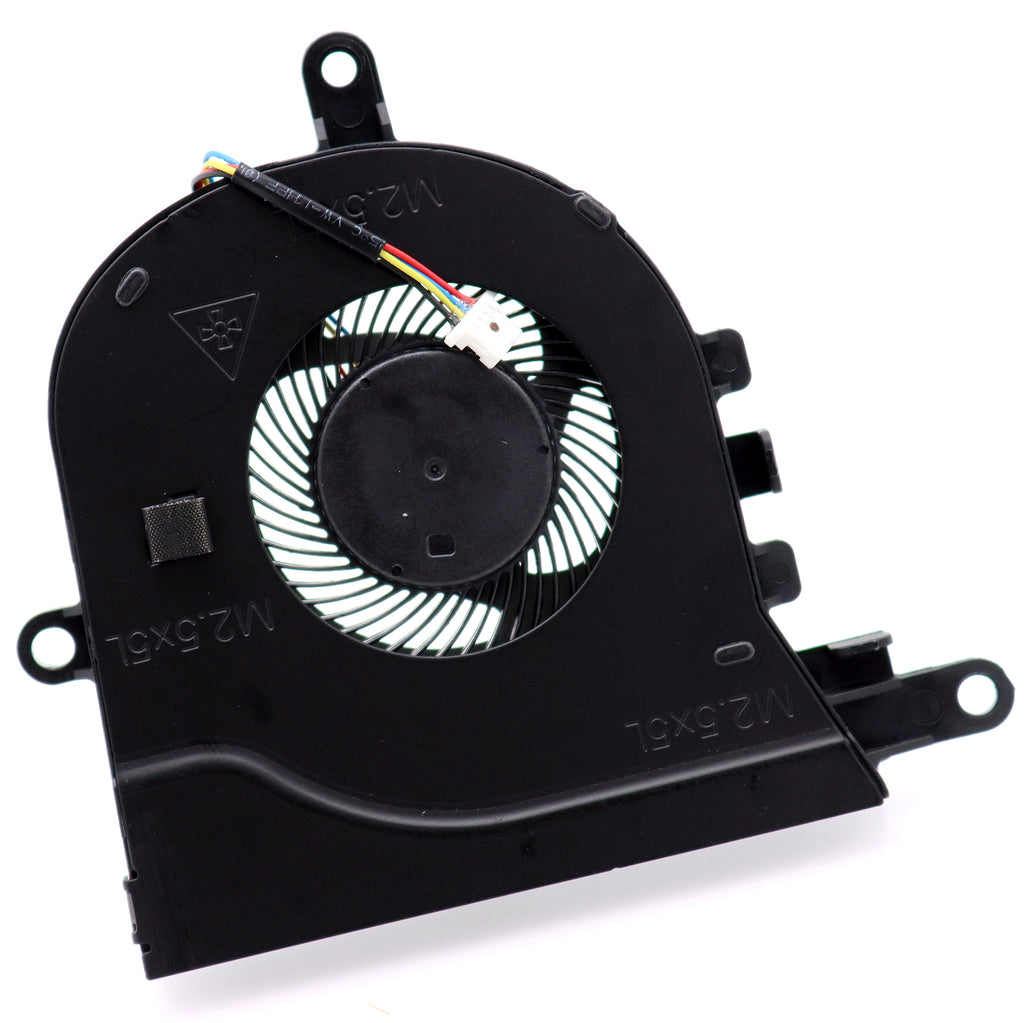

This is the CPU Cooling Fan for the Latitude 3590, Inspiron 15 (5570), and Inspiron 17 (5770) laptops with the Discrete AMD Radeon Graphics.
If your PC fan is running very loud or not functioning then a replacement may be needed.
The fan uses an integrated flex cable to connect to the mainboard. The cable connects via 4-pin connector making it a plug and play replacement module, NO soldering is required.
D P/N: 0NPFW6, NPFW6, FX0M0, 0FX0M0
P/N's found on fan: DFS1503055P0T FK3A DC28000K8D0 DC28000K9F0 DC28000K9D0
Specifications:
- Direct Current: DC 5V/0.5A
- Color: Black
- Connection: 3-pin 3-wire, plug-in
Reference list of compatible with Dell Laptop Models:
- Inspiron 15 (3580)
- Inspiron 15 (3581)
- Inspiron 15 (5570) with AMD Graphics
- Inspiron 15 (5575)
- Inspiron 17 (5770) with AMD Graphics
- Latitude 3490 (E3490)
- Latitude 3590 (E3590) with AMD Graphics
What's in the Box
- 1x CPU Cooling Fan
