Description
The Wireless-AC AX200 adapter supports Bluetooth+ 5 and 2x2 802.11ac Wi-Fi including wave features such as 160MHz channels, delivering up to 2.4Gbps and downlink MU-MIMO.
These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11ac devices. Combined with Core processors and exceptional Intel wireless innovations, the Wireless-AC AX200 can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go.
Module is 22x30mm and should only be used in Laptops with an M.2 connector and a standard Key A or E socket.
It WILL NOT work in the M.2 slot in a Desktop.
Features:
- Only work with Windows 10* 64bit (NOTE: NOT works with Windows 7/8/8.1).
- Compatible with Dell Alienware 13 R2/R3, 15 R2/R3/R4, 17 R3/R4/R5, Area-51 R4/R5, Area-51 Threadripper Edition R3/R6/R7, Aurora R5/R6/R7/R8, G5 15 5587, G7 15 7588, XPS 8930. Compatible with Dell Alienware 13 R2/R3, 15 R2/R3/R4, 17 R3/R4/R5, Area-51 R4/R5, Area-51 Threadripper Edition R3/R6/R7, Aurora R5/R6/R7/R8, G5 15 5587, G7 15 7588, XPS 8930.
- Supports 2.4GHz or 5GHz Dual Band with Bluetooth 5.1, 5GHz up to 1730Mbps, 2.4GHz up to 574Mbps. (The router must on 160MHz and Supports 802.11AX)
- Board Form Factor: M.2 2230 and a standard Key A or E socket, IPEX4 Antenna connector.
Specifications
- Model: AX200NGW/1650X
- Connector interface: M.2 2230
- System Interface Type: PCIe, USB
- Antenna connector: IPEX 4 / iPX 4 Connector
- Wireless data rate:
- 5GHz up to 1730Mbps (You router must support 802.11AX)
- 2.4GHz up to 574Mbps (160MHz)
- Max speed: If your router support 802.11AX, the max speed up to 2.4Gbps
- Streams: 2X2
- Bluetooth: Bluetooth 5.1
- Antenna Diversity: Supported
- MU-MIMO: Yes
- Frequency: Dual Band 2.4/5GHz
- IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w, 802.11r, 802.11k, 802.11v Wi-Fi CERTIFIED*: 802.11ax
- Operating Systems: Windows 10 32/64-bit (NOt support Windows 7/8/8.1)
- Dimension (H x W x D): 22 x 30 x 2.4 mm, 12 x 16 x 1.65 mm

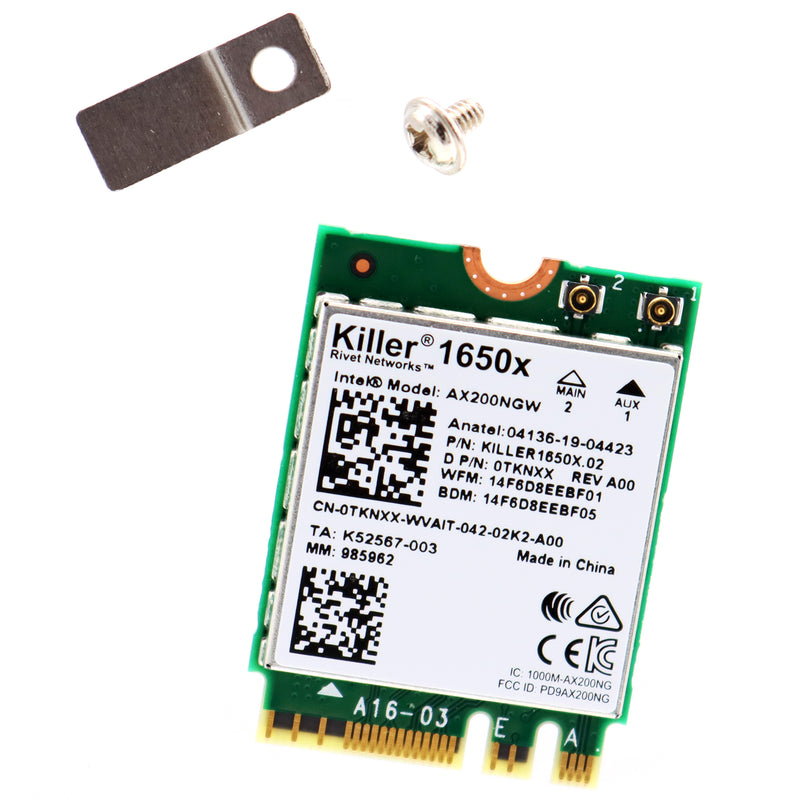

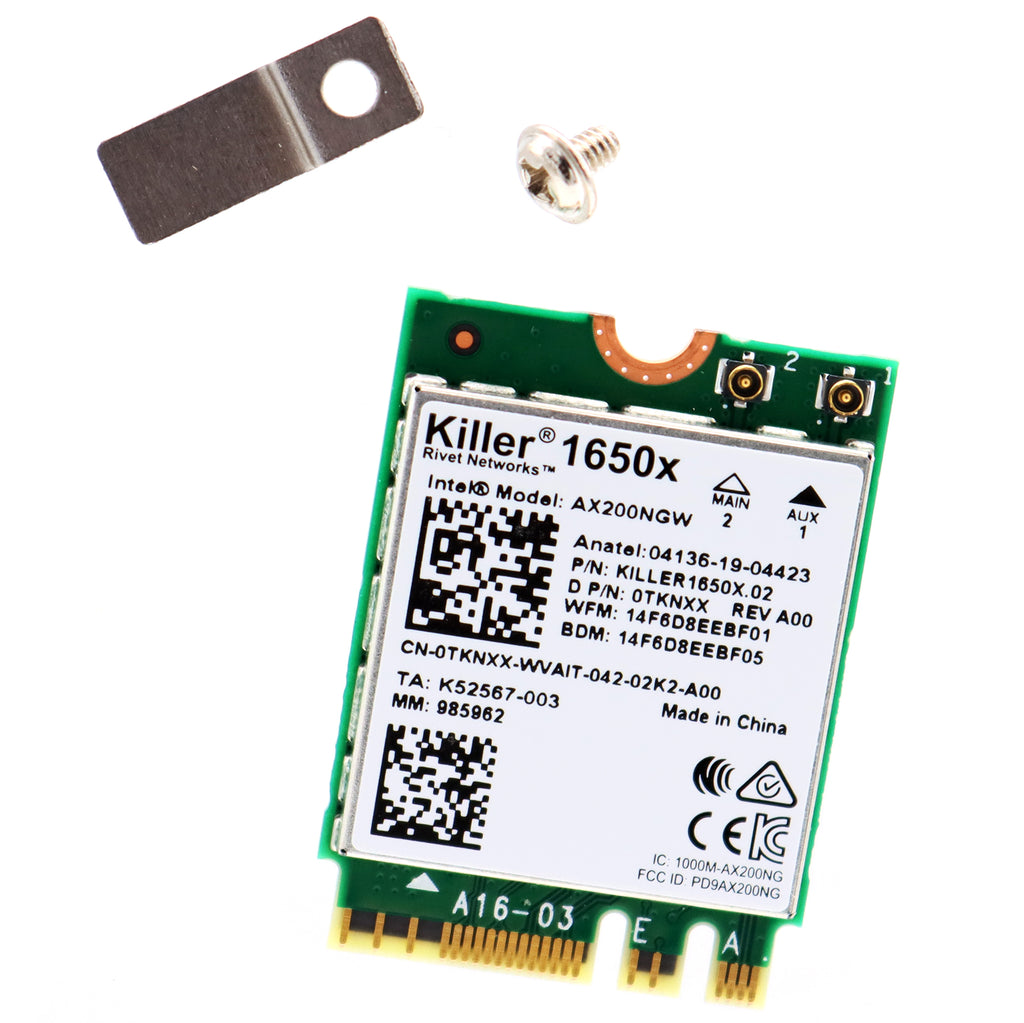

What's in the Box:
- 1x 1650X M.2 NGFF WiFi Card
- 1x Screws
- 1x Holder Bracket
